Enterprise Architecture Case StudyMulti-Role Real-Time Cockpit & AI Assistant

Vault — Multi-Role Project Delivery Cockpit & AI Assistant

Vault is an enterprise-grade, multi-role project management cockpit designed for modern engineering teams. It bridges the gap between client visibility, engineering execution, and program management by uniting structured intake, resource capacity planning, and bi-directional Jira Cloud syncing into a single, real-time workspace.

Capacity SafetyReal-Time Alerts>8h/day overload badges

Jira Sync Speed< 1 SecondBi-directional Webhook Sync

AI Token Efficiency-90% API FeesRedis 4-hour response TTL

State BrokerRedis SSE TunnelZero page-reload live updates

🗺️ Delivery Journey & System Architecture

Vault aligns four organizational roles into a continuous delivery loop, synchronized in real-time via a Redis Pub/Sub Server-Sent Events (SSE) tunnel and an incoming Jira webhook stream:

[1. Client Intake & RICE] ──> [2. TPM Capacity Allocation] ──> [3. AE Execution & Standup] ──> [4. Admin Cockpit & AI Analytics]
         ▲                                                                                                    │
         └────────────────────────── Bi-Directional Jira & Webhook Loop ─────────────────────────────────────┘

Technical Stack Overview

FrontendReact SPA, Vite, Tailwind CSS V3, SVG Gantt charting engine, SSE hooks.
BackendNode.js, Express, Jira Cloud REST APIs, Redis Pub/Sub broker, PostgreSQL.
AI OrchestrationDify Docker stack (Ollama / Llama 3), lean-prompting, 4h Redis TTL cache.

🖼️ User Portals & Visual Walkthrough

Role 01 — Client Partner

1. Client Portal — Prioritized Intake & Timeline

Clients gain a clear, scoped view of their active milestones and can submit delivery requests, scoring them mathematically using the RICE model (Reach, Impact, Confidence, Effort).

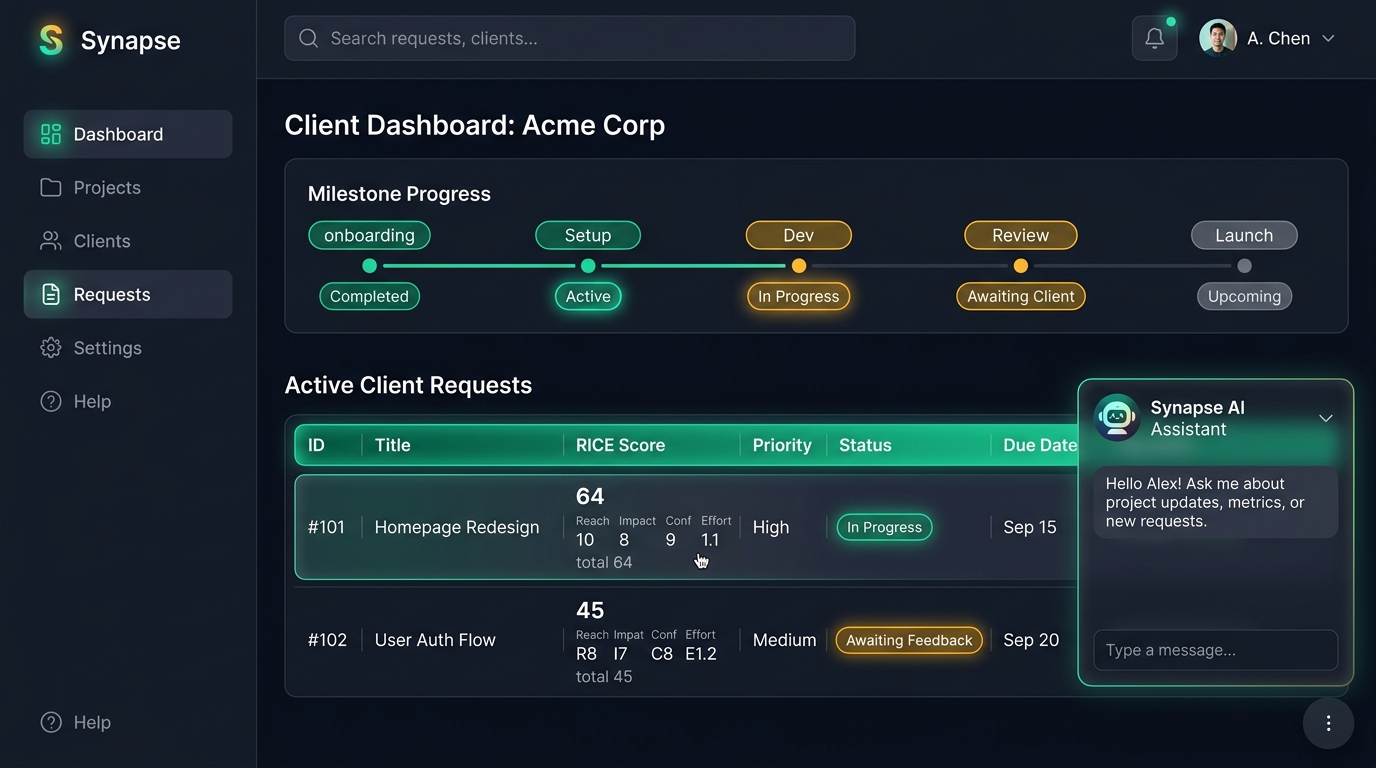

Client Dashboard — RICE Model Prioritized Intake

Role 02 — Technical Program Manager

2. TPM Workbench — Drag-and-Drop Capacity Scheduling

Technical Program Managers (TPMs) schedule sprints by dragging Jira tickets directly onto engineers' calendars. The board displays real-time overload safety badgesif an engineer's allocation exceeds 8 hours a day.

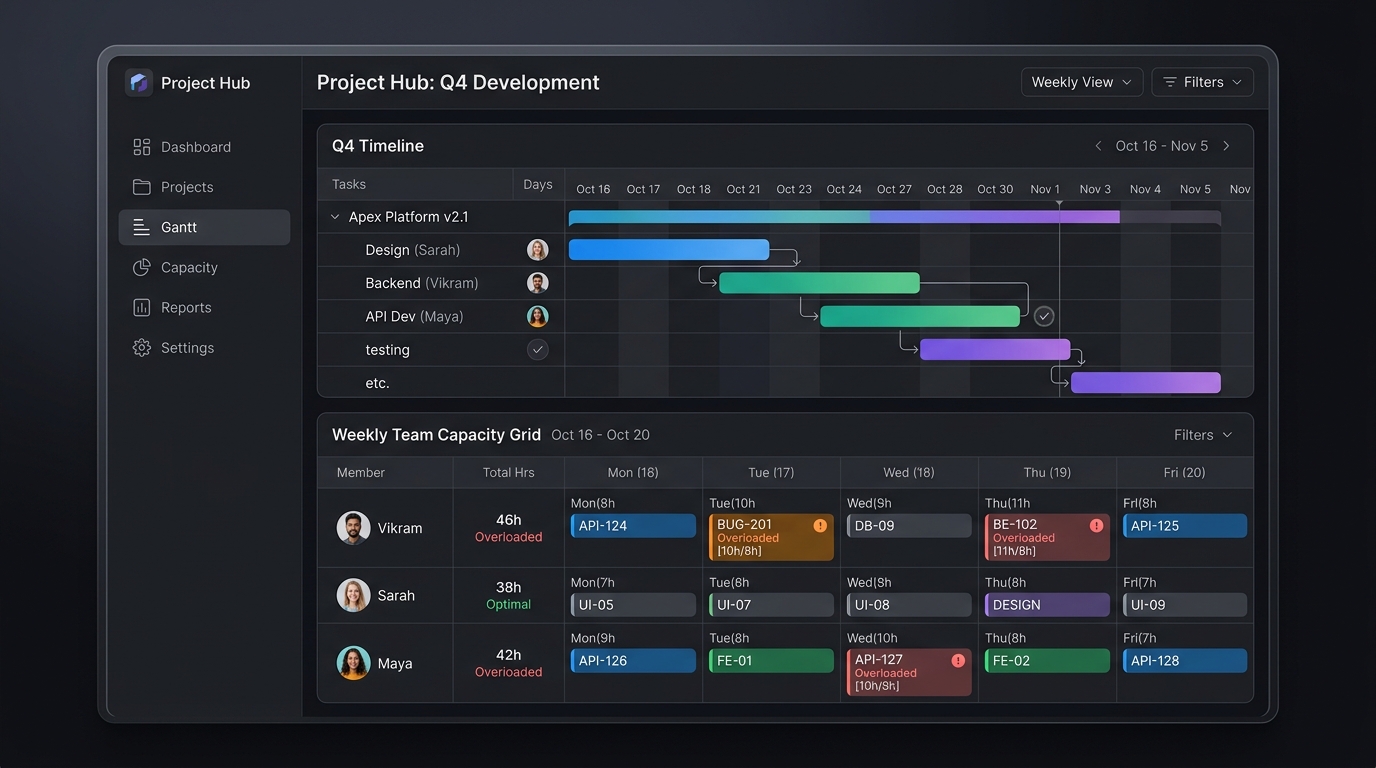

TPM Capacity Board — Drag-and-Drop Calendar Scheduling

Role 03 — Account Engineer

3. AE Workspace — Clean Inbox & Standup Compliance

Account Engineers (AEs) land on a focused list of today's allocations. They submit their EOD standups and write status transition comments that sync directly back to the Jira issue history.

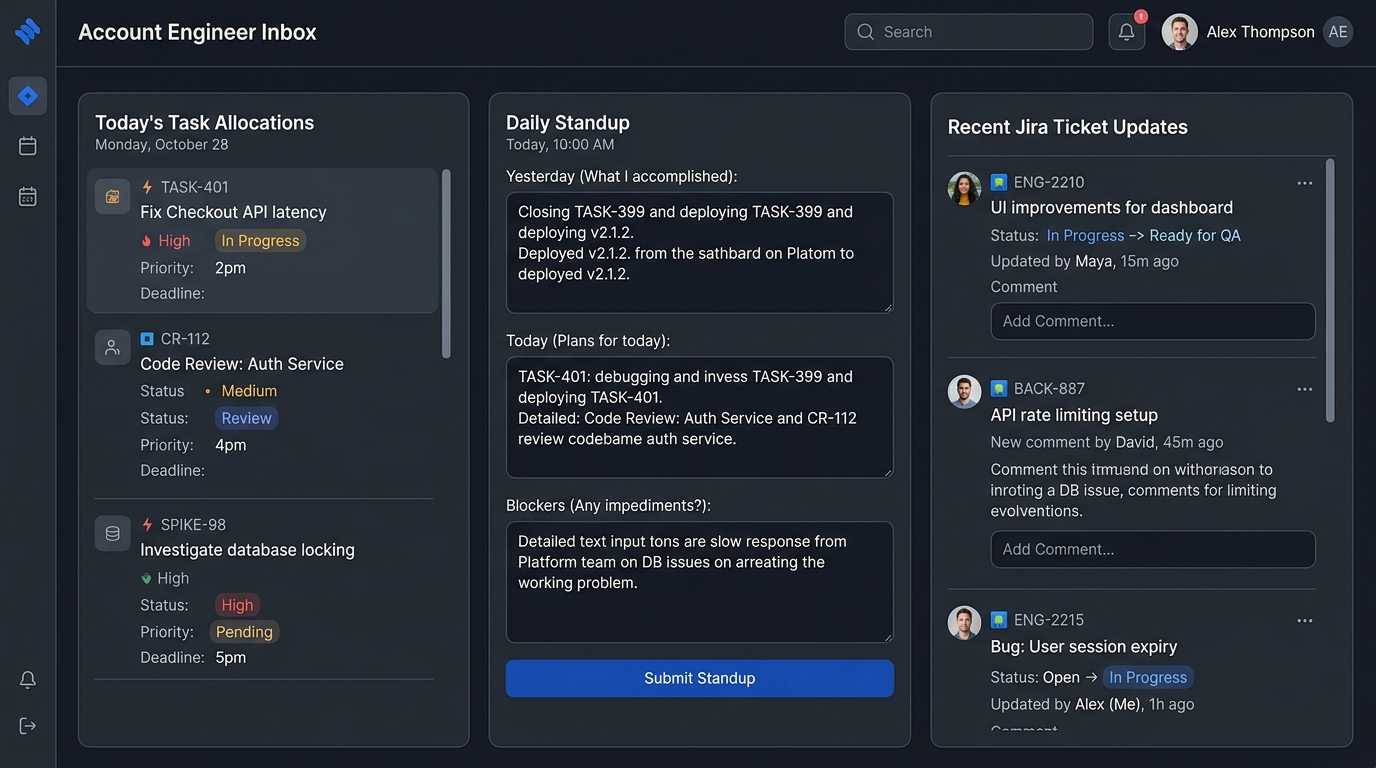

AE Inbox — Task Allocations & Jira Webhook Sync

Role 04 — Executive Leadership

4. Admin Cockpit — Executive Summary & Portfolio Health

Admins and leadership view cross-organizational heatmaps, override project RAG (Red-Amber-Green) signals, and consume AI-generated executive summaries cached efficiently in Redis.

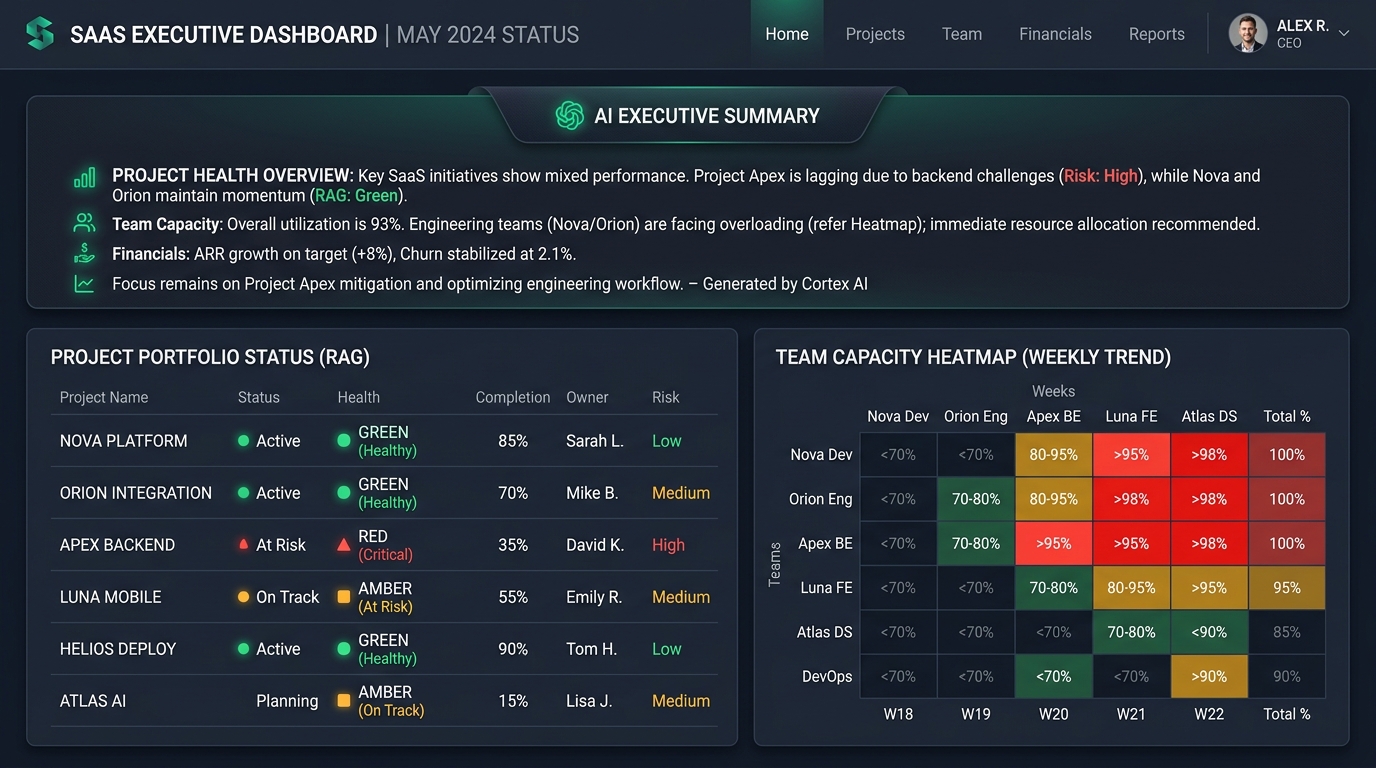

Admin Dashboard — Portfolio Heatmaps & AI Executive Summaries

⚡ Key Synchronization Engines

Server-Sent Events (SSE) Sync

When a TPM assigns a ticket, backend writes allocation and publishes to pm:events Redis channel.
The Express SSE server catches the Redis event and pushes it to connected browsers.
Frontend usePmEvents() hook intercepts payload, debounces by 300ms, and refreshes component state.

Bi-Directional Jira Webhook Loop

When a ticket status changes in Jira, a webhook is fired to POST /api/jira/webhook.
Vault records the transition, alerts the assigned engineer's Inbox, and prompts them for audit comments.
Engineer explanations are posted directly back to Jira as issue comments via jira.addComment().
